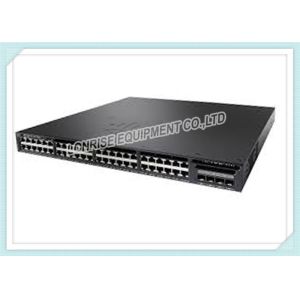

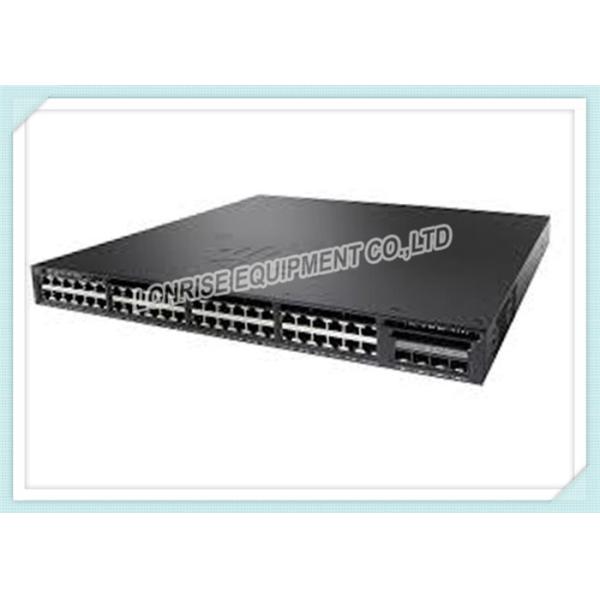

4 X 1G Uplinks Cisco Optical Fiber Switch PoE WS-C3650-48PS-L Layer 3 Switching

  • 1
  • 2

Brand Name : CISCO

Model Number : WS-C3650-48PS-L

Certification : CE

Place of Origin : CHINA

MOQ : 1 UNIT

Price : Negotiable

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 50 UNITS/MONTH

Delivery Time : 1-2 DAYS

Packaging Details : NEW IN BOX

Part Number : WS-C3650-48PS-L

Brand : CISCO

Enclosure Type : Rack-mountable - 1U

Uplink Interfaces : 4 x 1G SFP uplinks

Ports : 48 x 10/100/1000 POE+ Ethernet ports

Stack bandwidth : 160 Gpbs

Feature Set : IP Base

RAM : 4 GB

Contact Now

Cisco WS-C3650-48PS-L Catalyst 3650 48 Port PoE 4x1G Uplink LAN Base

Overview

The Cisco Catalyst 3650 series is the enterprise-class standalone and stackable access-layer switch that provides the foundation for full convergence between wired and wireless on a single platform. The Cisco Catalyst 3650 takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. It can help you increase wireless productivity and reduce your TCO.
4 X 1G Uplinks Cisco Optical Fiber Switch PoE WS-C3650-48PS-L Layer 3 Switching

Specifications

Cisco WS-C3650-48PS-L Catalyst 3650 48 Port PoE 4x1G Uplink LAN Base
Device TypeSwitch - 48 ports - Managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
SubtypeGigabit Ethernet
Ports48 x 10/100/1000 (PoE+) + 4 x SFP
Power Over Ethernet (PoE)PoE+
PerformanceSwitching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
FeaturesFull duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (Strict Priority Queuing (SPQ), Syslog support, Trivial File Transfer Protocol (TFTP) support, Trunking, Uni-Directional Link Detection (UDLD), Unicast Reverse Path Forwarding (URPF), VLAN support
General
Authentication MethodKerberos, Secure Shell (SSH), RADIUS, TACACS+
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Device TypeSwitch - 48 ports - Managed - stackable
Enclosure TypeDesktop, rack-mountable 1U
Flash Memory2 GB
Mac Address Table Size32000 entries
PerformanceSwitching capacity: 176 Gbps ¦ Forwarding performance: 130.95 Mpps
Ram4 GB
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
Status IndicatorsPort transmission speed, port duplex mode, system, active, status, PoE


Environmental Parameters
Humidity Range Operating5 - 96% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x Stacking Module
Interfaces48 x 1000Base-T - RJ-45 - PoE+ - 30 W ¦ 1 x USB - Type A ¦ 1 x serial (console) - RJ-45 - management ¦ 1 x management (Gigabit LAN) - RJ-45 - management ¦ 1 x management (mini-USB) - Type B - management ¦ 4 x 1000Base-X - SFP - uplink
Manufacturer Warranty
Service SupportLimited warranty - replacement - lifetime - response time: next business day ¦ Technical support - phone consulting - 90 days
Miscellaneous
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
Mtbf383,760 hours
Rack Mounting KitIncluded


FAQ
1. Where do your products come from?
All of our products are from Cisco/Huawei distribution , Cisco/Huawei partner directly. We are Cisco partner at local, with cisco verified certification.
2. If all equioments I can buy service from local cisco ?
For all equipments you can buy service from local, because our goods are smart net free, all with clean serial number.
3. How to ship the goods?
Lonrise work with DHL,FEDEX,UPS and TNT. Your order will be dispatched by express delivery door to door.
4. What’s your payment term?
We always accept 10% advance payment. For long term cooperation, we can consider to apply credit accordingly.
